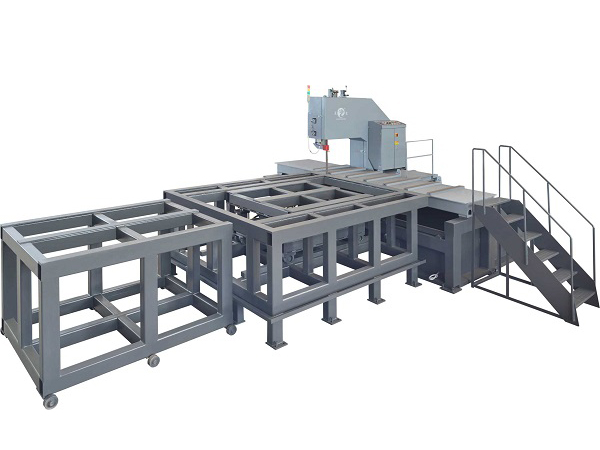

Vertical Band Saw Machine

Vertical Band Saw Machine

This G5340/80/200 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high precision,material-saving, energy-saving, easy operation etc.
Send Inquiry
This G5340/80/200 vertical band saw machine is an equipment for cutting metal sheet materials with bi-metal band saw blades, featuring narrow kerf, high precision,material-saving, energy-saving, easy operation etc.

MODEL G5340/80/200
Cutting Capacity Height 400 mm 15 3/4"
Depth 800 mm 31 1/2"
Length 2000 mm 78 3/4"
Drive Capacity Main Motor 5.5 kW
Hydraulic motor 0.75 kW
Coolant Pump 0.06 kW
Blade Size 54X1.6 mm
Blade Speed 20~65 m/min 66~213 fpm

1. Blade Cleaning Brush
2. Work Light
3. Security Switch
4. Hydraulic lifting table
5. One Piece of Bi-metal Saw Blade
6. One Set of Tools with Tool Box
7. Operation Manual

1. Laser Projector
2. Automatic Chip Conveyor
3.PLC Control
4. Hydraulic Blade Tension
5. Saw Guide Elevation is Hydraulically Operated
6. Inverter

The G5340/80/200 vertical band saw machine is a suitable size for almost all applications. The vertical band saw is available with a mobile saw frame and hydraulic lift table for feeding material,the stroke can be customized as user requirement. CHENLONG G5340/80/200 vertical band saw machine offers cutting heights up to 400 and table lengths for 2000 mm long saw cuts as standard features.

Features

  • This G5340/80/200 semi-automatic vertical band saw machine comes with the hydraulic lifting table to feeding the material
  • Powerful and accurate
  • Laser-assisted material alignment
  • Industrial-grade bearings and drive wheels ensure that the machine will last for many years of trouble-free use.
  • Chenlong covers this vertical metal band saw with a 1-year parts warranty.
